Product Details:
Payment & Shipping Terms:
|
| Material: | Q235 Steel Plate | Application: | To Hold H20 Beams |
|---|---|---|---|
| OEM: | Available | Type: | Four-way Head |
| Size: | 230mm X 145mm | Finishing: | Painting, Galvanized, Powder Coating, |
| Colour: | As Request | ||
| High Light: | concrete formwork accessories,concrete wall form accessories |
||

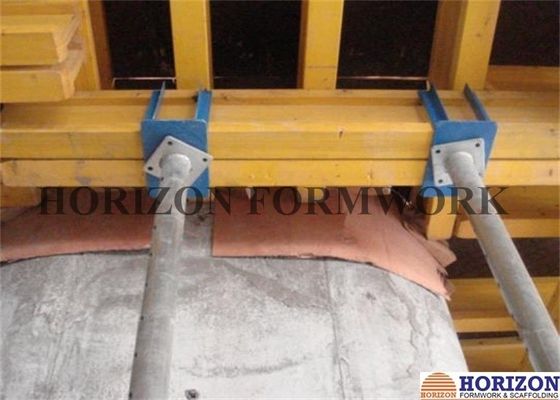

The Fork Head serves to keep the Primary beam in position and protects the H20 Timber Beam from falling down. It can hold 1 to 2 beams and is secured to the steel prop with a lock pin.
The fork head has a 2-way design. This means that in one position one timber beam, and in the other position - a 90°rotation - two timber beams can be inserted in the head.
 |
Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
| 230 | 145 | 330 | 2.5 |
